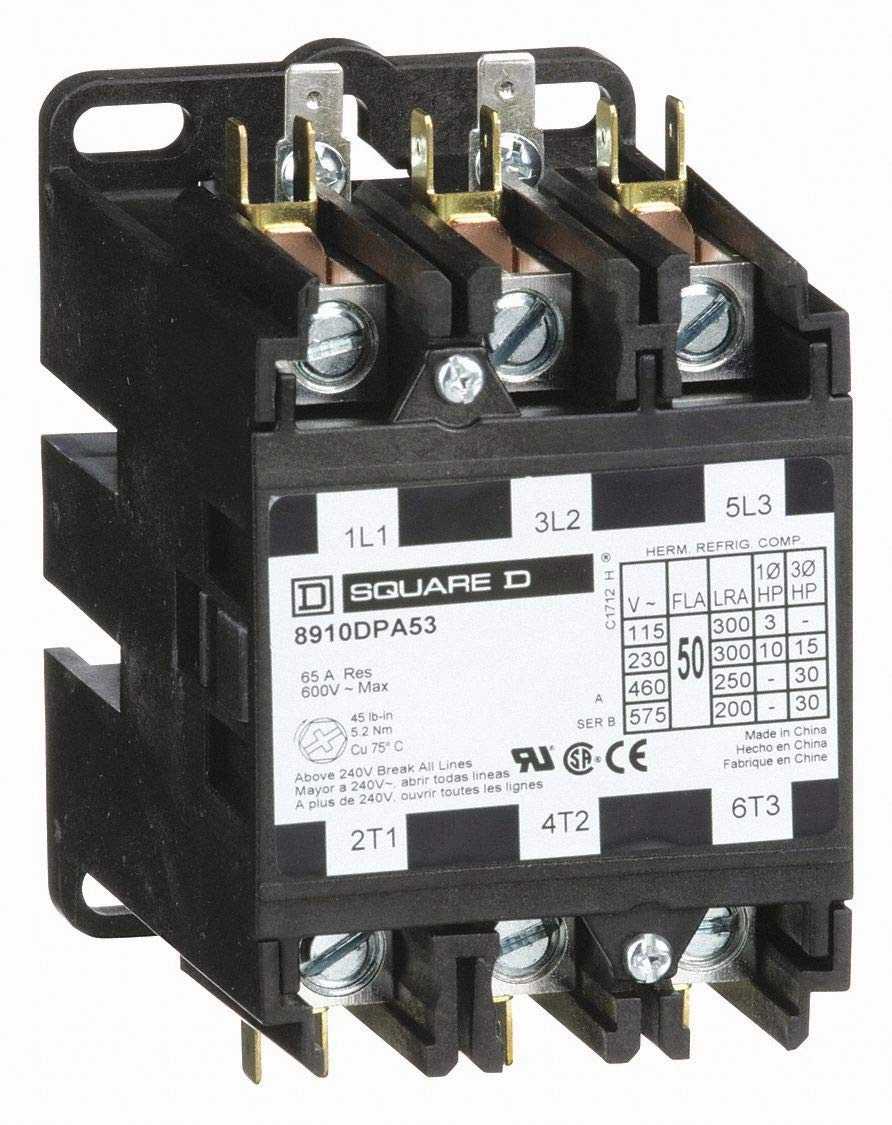

This Square D Magnetic Definite Purpose Contactor is an open style, 3-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. For convenience, the coils can be changed out swiftly without the need for tools. The included box lugs and industry-standard mounting help provide a more reliable connection and easier wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 120VAC coil volts. 50A (inductive) and 65A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.

Item: Definite Purpose Contactor
Number of Poles: 3
Full Load Amps-Resistive: 65
Full Load Amps-Inductive: 50
Coil Volts: 120VAC
HP @ 1 Phase - 120V: 3
HP @ 1 Phase - 240V: 10
HP @ 3 Phase - 240V: 15
HP @ 3 Phase - 480V: 30
HP @ 3 Phase - 575V: 30
Height: 4.06"
Width: 2.56''
Depth: 3.67"
Enclosure NEMA Rating: No Enclosure
Hz: 50/60
Reversing: No
Includes: Quick Connect Terminal
Standards: UL, CSA, CE

• Package Dimensions ‏ : ‎ 2 x 2 x 2 inches; 1.6 ounces
• Date First Available ‏ : ‎ October 9, 2018
• Manufacturer ‏ : ‎ CAI - SQUARE D
