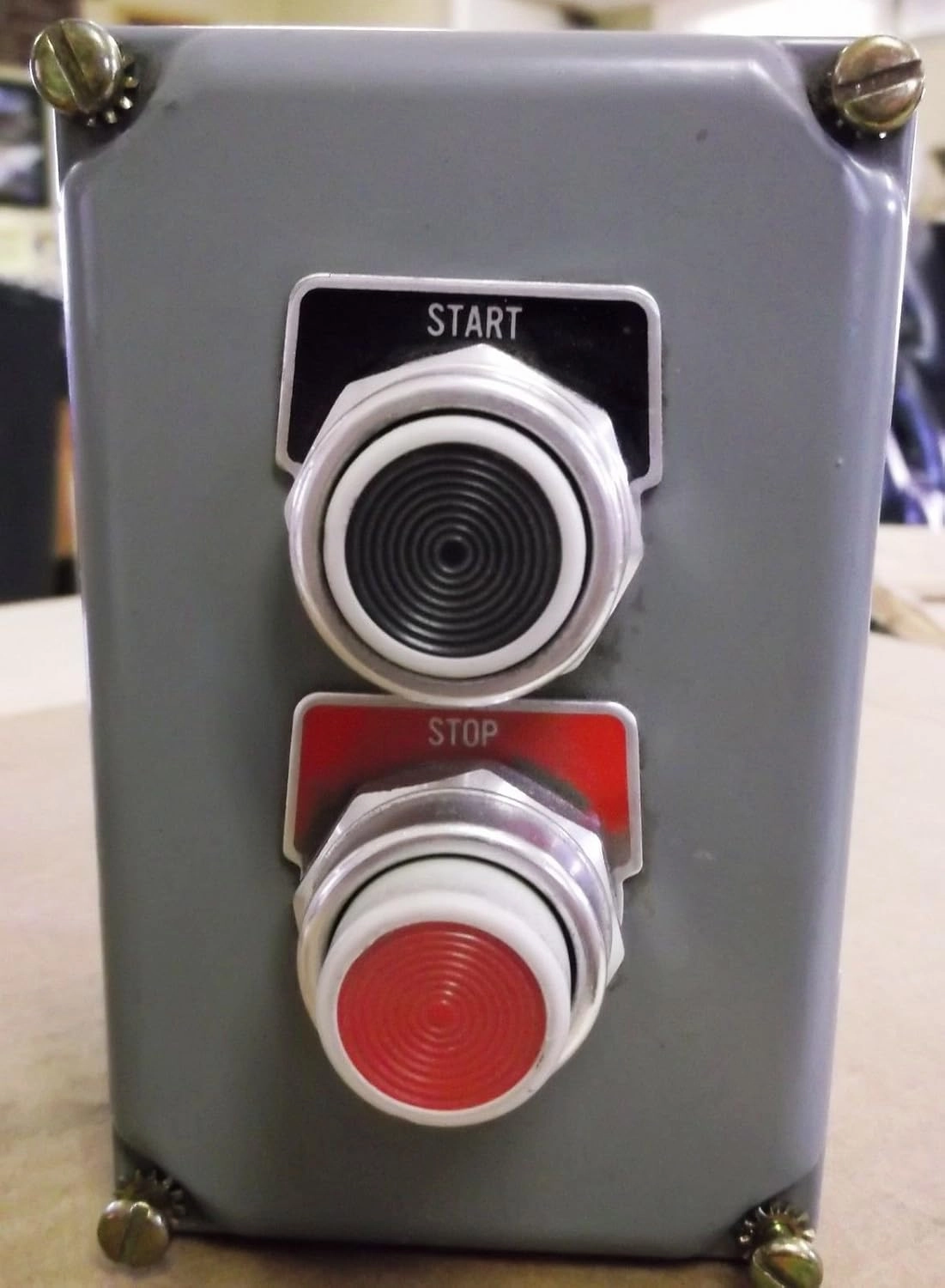

Assembled Control Stations Metal NEMA enclosures 600VAC/DC max.Surface-mount stations for use with magnetic motor starters to control functions of electric motors. Not for direct starting or stopping of motors.NEMA 1, 3, 4, and 13Contact blocks rated 1.2A at 600VAC, 1.5A at 480VAC, 3A at 240VAC, 6A at 120VAC.UL Listed. Push Button Control Station, Number of Operators 2, Size 30mm, Legend Start/Stop, Type of Operator Push Button/Push Button, Action Maintained / Maintained, Contact Form 1NO/1NC, Mechanical Interlock Yes, NEMA Rating 1, 3, 4, 13, Contact Rating 10A @ 600VAC, 2.5A @ 24VDC, NEMA Contact Rating Designation A600/Q600, Mounting Wall, Hub 3/4 In. NPT, Height 3.53 In., Width 3.58 In., Depth 5.75 In., Enclosure Material Die Cast Zinc, Enclosure Color Gray, Standards UL Listed, CSA Certified, CE

• Product Dimensions ‏ : ‎ 6.3 x 4.2 x 6 inches; 4 Pounds
• Date First Available ‏ : ‎ May 7, 2013
• Manufacturer ‏ : ‎ SQUARE D BY SCHNEIDER ELECTRIC
