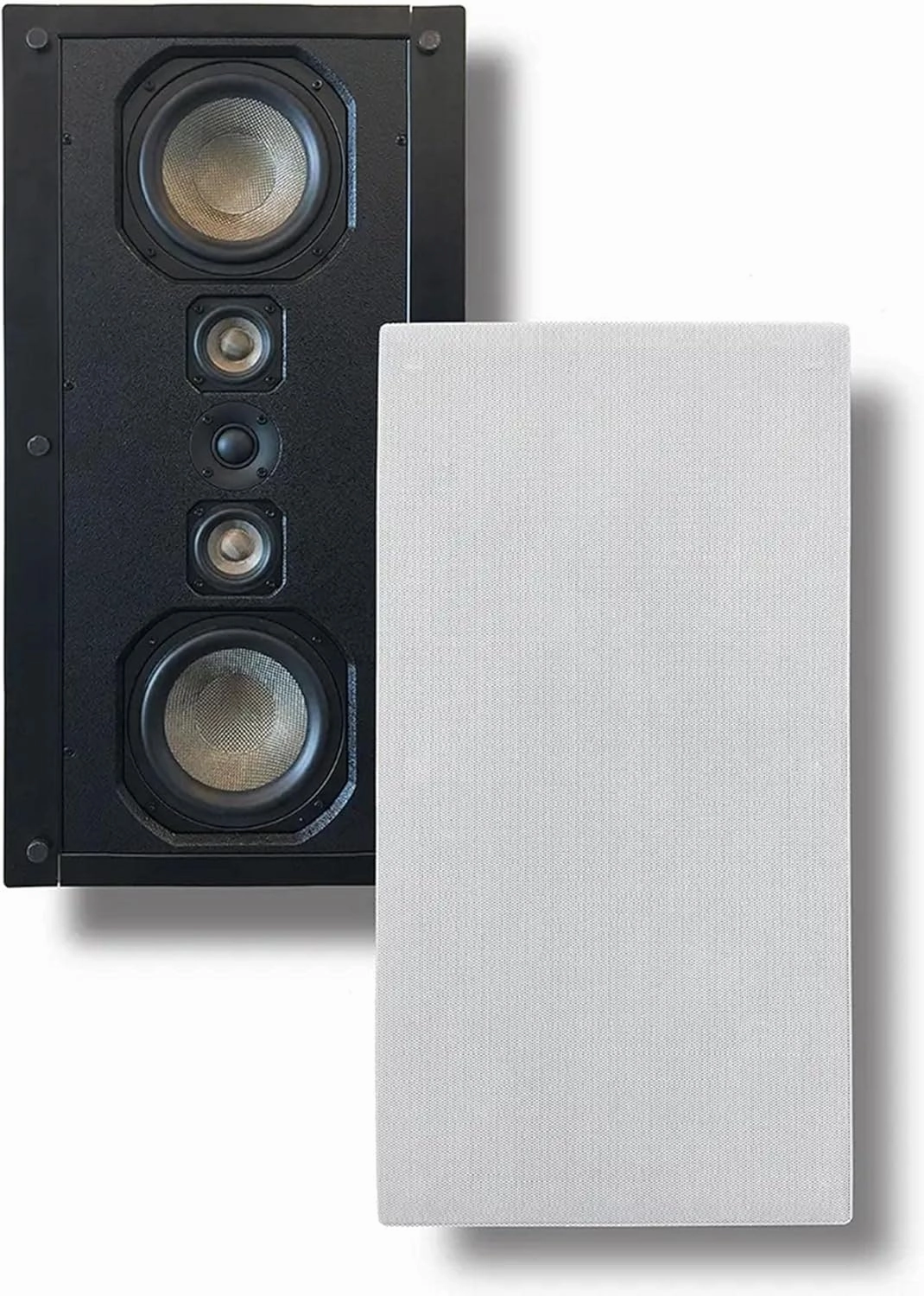

3 way sealed & tuned 3/4" MDFback box, Steel reinforced in-wall, 2 X 6.5” Kevlar / Fiberglass laminate woofers, 2 x 2.5” midrange, 1” silk dome tweeter, Eight mounting dog install tabs.

Leave the stress of the outside world for awhile and delight in the serenity of your home. Our Maxwell Series M-8650-W In-wall Speaker is designed to deliver high performance, clear and concise sound while complementing the design elements of your home with a flawless appearance. Maxwell In-wall speakers engineered enclosures are sealed and tuned for outstanding high-performance for custom architectural solutions. This speaker effortlessly reproduces the artist’s original soundtrack recording with such astonishing natural detail and deep visceral bass, that you will swear you’re sitting at a live concert venue while relaxing in the comfort of your home.

SPECIFICATIONS
Frequency Response 35Hz-20KHz /-3dB
Sensitivity 91dB @ 2.83V/1 meter
Nominal Impedence 8 ohms
Crossover Frequencies 900Hz/2,200Hz
Drivers 2 X 6.5” Fiberglass/Kevlar laminate edge-wound, voice coil woofers, 2 x 2.5 Fiberglass/Kevlar laminate, edge-wound voice coil mids, 1” Silk dome tweeter
Recommended Power 50 W-350 W
Product Dimensions 13.3”W x 25.6”H/338mm W x 650mm H
Installation Eight Dog-leg Installation Points
Input 5-way Binding Posts
Weight 23.5 lbs/10.7kg
Enclosure Sealed, tuned MDF enclosure with metal reinforcement
Mounting Depth 3.9”/99mm
Sold As Singles
Rough-In Kit WK-8600
Part Number KLHF00032
UPC Number 818031010246
Cutout Dimensions: 10.25”W x 24.1”H (260mm W x 612mm H)
