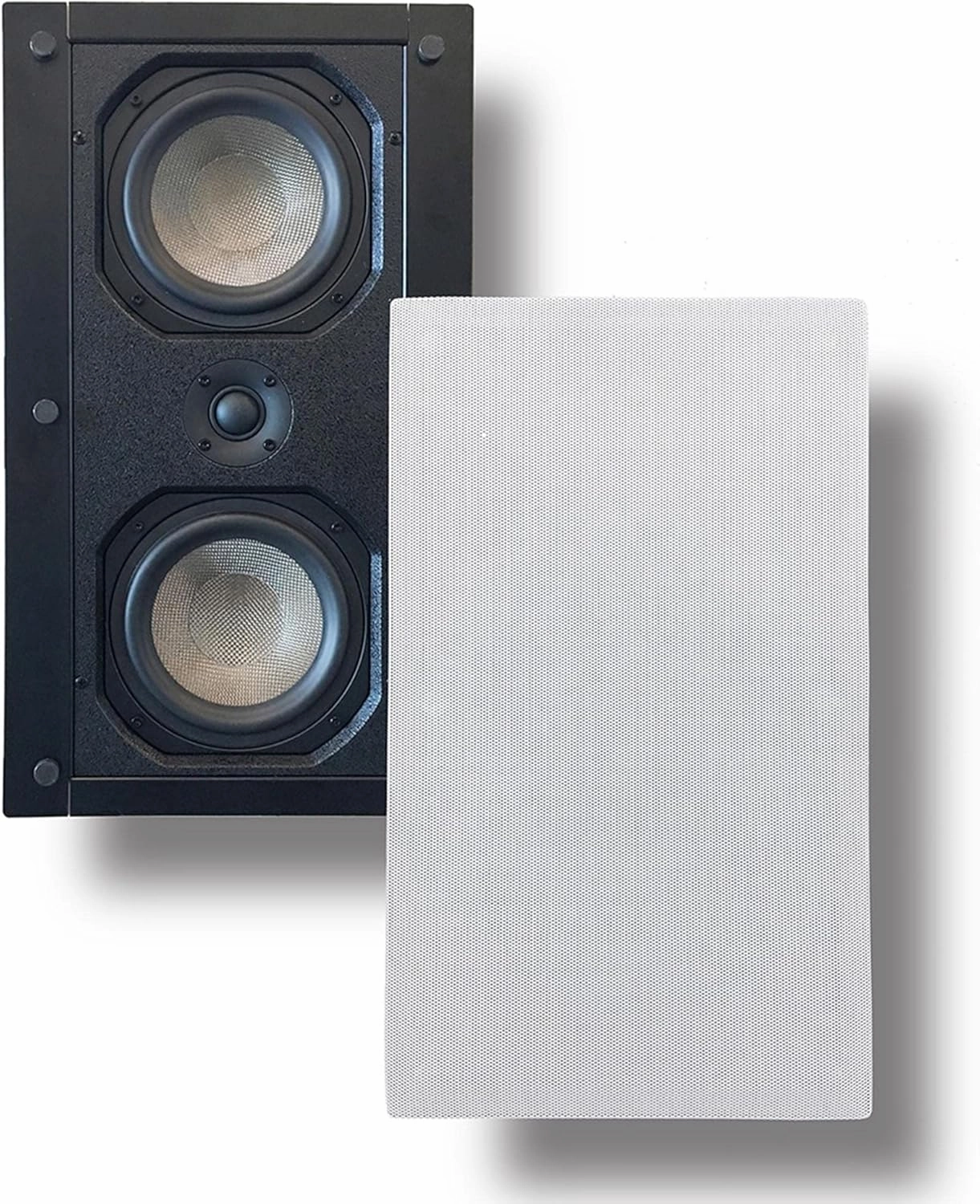

2 way sealed & tuned 3/4" MDF back box, Steel reinforced in-wall, 2 X 6.5” Kevlar / Fiberglass laminate woofers, 1” silk dome tweeter, Six mounting Dog install tabs.

Leave the stress of the outside world for awhile and delight in the serenity of your home. Our Maxwell Series M-8600-W In-wall speaker is designed to deliver high performance, clear and concise sound while complementing the design elements of your home with a flawless appearance. Maxwell In-wall speakers engineered enclosures are sealed and tuned for outstanding high-performance for custom architectural solutions. This speaker effortlessly reproduces the artist’s original soundtrack recording with such astonishing natural detail and deep visceral bass, that you will swear you’re sitting at a live concert venue while relaxing in the comfort of your home.

SPECIFICATIONS
Frequency Response 45Hz-20KHz /-3dB
Sensitivity 91dB @ 2.83V/1 meter
Nominal Impedence 8 ohms
Crossover Frequency 2500Hz
Drivers 2 x 6.5” Fiberglass/Kevlar laminate woofers, 1” Silk dome tweeter
Recommended Amplifier Power 50 W-275 W
Product Dimensions 11.3” W x 19.7” H/287mm W x 500mm H
Installation Six Dog-leg Installation Points
Input 5-way Binding Posts
Weight 16 lbs./7.3kg
Enclosure Sealed, tuned MDF enclosure with metal reinforcement
Mounting Depth 3.9”/99mm
Sold As Singles
Rough-In Kit WK-8600
Part Number KLHF00033
UPC Number 818031010253
Cutout Dimensions: 8.25”W x 18.1”H (210mm W x 460mm H)
