- Type: MOLDED CASE, THERMAL MAGNETIC
- Voltage Rating: 240/480/600 VAC, 500 VDC
- Maximum AC Voltage Rating: 600 V
- Interrupting Rating: 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 500 VDC
- Current Rating: 20 AMPERE

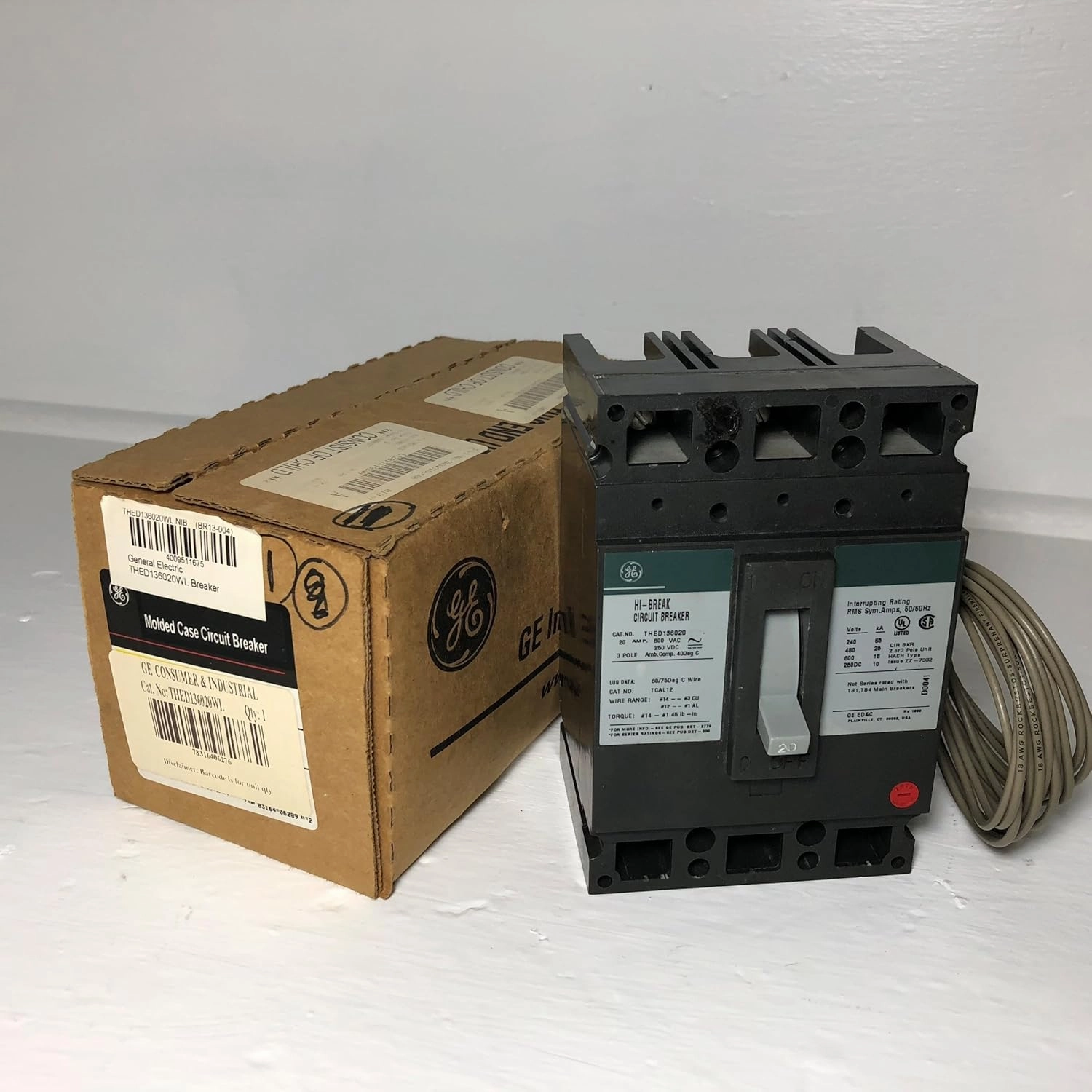

PN: THED136020
Circuit Breaker
600V 20A 40C
Current Interrupting Ratings Max RMS SYM
65,000 Amps @ 240 VAC
25,000 Amps @ 480 VAC
18,000 Amps @ 600 VAC
- Is Discontinued By Manufacturer : No
- Product Dimensions : 3 x 4 x 7 inches; 4 Pounds
- National Stock Number : 5925-00-529-3908
- Date First Available : August 28, 2015
- Manufacturer : General Electric
