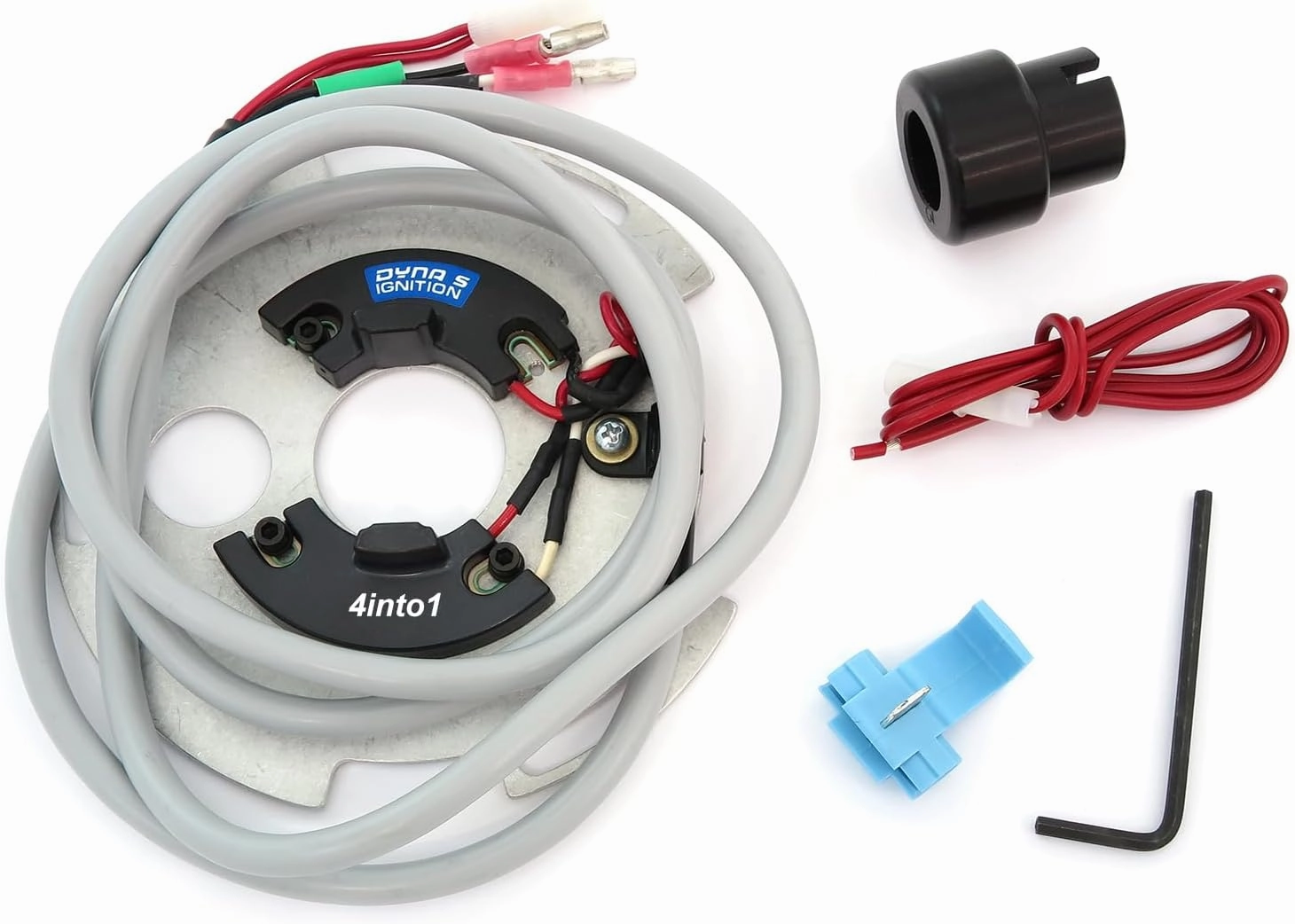

- The Dyna S Ignition System is a complete self-contained electronic ignition system built with the latest state-of-the-art engineering. This is the same ignition used by top racers over the past 2 decades. The Dyna S is completely housed behind the ignition cover and uses a magnetic rotor with the original spark advancer, so the factory advance curve is maintained.
- The venerable Dyna S ignition System is a time proven solution to the basic ignition needs of the vintage muscle bike. As a stand alone ignition the Dyna S is the standard of performance and reliability.
- Installation Instructions available on our website. Note: A mechanical advancer must be added to any model that didn't originally have a points type ignition.
- Dynatek part number: DS2-1
- See Fitment List In Product Description
NOTE: If you have a '73 Z1 or an early '74 Z1A- you may need to supply a different crank rotor. Up through engine number Z1F-32817. Kawasaki installed a 5/40 degree mechanical advancer (normal fire mark is 5 degrees- then advancing to 40 degrees). Later models utilized a 20/40 advancer. If your bike has one of the earlier 5/40 advancers- if substitution is required contact Dynatek customer service before ordering the standard rotor (3 rotor- 20/40) included. Request a special rotor for these early bikes (3A rotor 5/40).) As many advancers have been swapped from bike to bike, please visually inspect before ordering.
Dynatek part number: DS2-1
Fits Kawasaki:
Z1 900 - 1973-1975
KZ900 - A4 - 1976
LTD - KZ900-B1 - 1976
Ninja - ZX900-A1 - 1984
Ninja - ZX900-A2 - 1985
KZ1000 - KZ1000-A1 - 1977
KZ1000 LTD - KZ1000-B1 - 1977
KZ1000 - KZ1000-A2 - 1978
KZ1000 - KZ1000-A2A - 1978
KZ1000 - 1978
LTD - KZ1000-B2 - 1978
Z1R - KZ1000-D1 - 1978
KZ1000 - KZ1000-A3 - 1979
KZ1000 - KZ1000-A3A - 1979
Shaft - KZ1000-E1 - 1979
KZ1000 LTD - KZ1000-B3 - 1979
Classic - KZ1000-G1 - 1980
LTD - KZ1000-B4 - 1980
KZ1000 - KZ1000-A4 - 1980
Shaft - KZ1000-E2 - 1980
Z1R - KZ1000-D3 - 1980
CSR - KZ1000-M1 - 1981
LTD - KZ1000-K1 - 1981
KZ1000-J1 - 1981
CSR - KZ1000-M2 - 1982
LTD - KZ1000-K2 - 1982
Eddie Lawson Replica - KZ1000-R1 - 1982
KZ1000-J2 - 1982
Eddie Lawson Replica - KZ1000-R2 - 1983
KZ1000-J3 - 1983
Police 1000 - KZ1000 - 1978-1985
GPz - KZ1100-B1 - 1981
Shaft - KZ1100-A1 - 1981
GPz - KZ1100-B2 - 1982
Shaft - KZ1100-A2 - 1982
Spectre - KZ1100-D1 - 1982
LTD Shaft - KZ1100-L1 - 1983
Shaft - KZ1100-A3 - 1983
Spectre - KZ1100-D2 - 1983
GPz - ZX1100-A1 - 1983
GPz - ZX1100-A2 - 1984
