- Dyna / Dynatek ignition kit with Magna coils for the Kawasaki KZ900 Z1. This is a great kit to replace the stock points and condensers and modernize the ignition system!
- The Dyna S Ignition System is a complete self-contained electronic ignition system built with the latest state-of-the-art engineering. This is the same ignition used by top racers over the past 2 decades. The Dyna S is completely housed behind the ignition cover and uses a magnetic rotor with the original spark advancer, so the factory advance curve is maintained.
- NOTE: If you have a '73 Z1 or an early '74 Z1A- you may need to supply a different crank rotor. Up through engine number Z1F-32817. Kawasaki installed a 5/40 degree mechanical advancer (normal fire mark is 5 degrees- then advancing to 40 degrees). Later models utilized a 20/40 advancer. If your bike has one of the earlier 5/40 advancers- if substitution is required contact Dynatek Customer Service before ordering the standard rotor (3 rotor- 20/40) included.
- Request a special rotor for these early bikes (3A rotor 5/40).) As many advancers have been swapped from bike to bike, please visually inspect before ordering.
- Fits Kawasaki: KZ900/Z1 - 1973-1976 | KZ1000C/P Police - 1978-1979 | KZ1000D Z1R - 1978 | KZ1000E Shaft - 1979 | KZ1000G Classic - 1980
The Dyna S Ignition System is a complete self-contained electronic ignition system built with the latest state-of-the-art engineering. This is the same ignition used by top racers over the past 2 decades. The Dyna S is completely housed behind the ignition cover and uses a magnetic rotor with the original spark advancer, so the factory advance curve is maintained.
Comes with everything shown instructions for the Dyna S and a one year manufacturer warranty on the Dyna ignition. Wires on the coils can be mounted on either terminal (no polarity or - )
NOTE: If you have a '73 Z1 or an early '74 Z1A- you may need to supply a different crank rotor. Up through engine number Z1F-32817. Kawasaki installed a 5/40 degree mechanical advancer (normal fire mark is 5 degrees- then advancing to 40 degrees). Later models utilized a 20/40 advancer. If your bike has one of the earlier 5/40 advancers- if substitution is required contact Dynatek Customer Service( before ordering the standard rotor (3 rotor- 20/40) included. Request a special rotor for these early bikes (3A rotor 5/40).) As many advancers have been swapped from bike to bike, please visually inspect before ordering.
Please read the electronic ignition installation instructions prior to purchasing if you're planning to install this yourself. You can view them on our website listing or contact us for link.

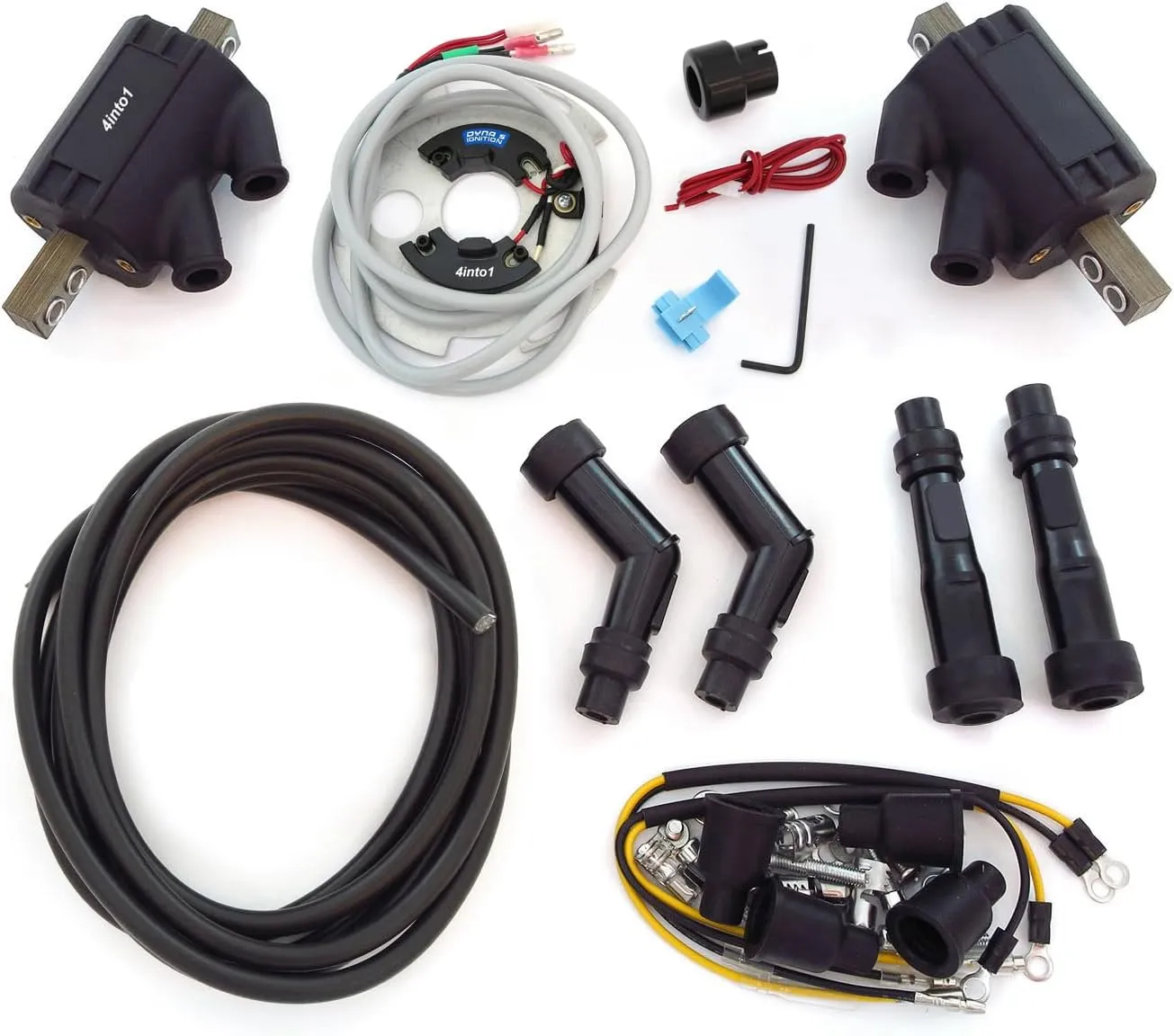

Kit Includes: 2 Magna High Output Coils, 4 Spark Plug Caps, Copper Core Spark Plug Wire, 1 Dyna S Electronic Ignition
Coil Specifications:Primary Resistance = 5 ohms, Secondary Resistance = 17,500 ohms, Mounting Holes = 90mm or 102mm (measured center to center), Mounting Posts = 13mm Width x 12mm Height
Fits Kawasaki:
Z1 900 - 1973-1975 | KZ900 - A4 - 1976
