Hydraulic-Magnetic Circuit Breakers
Main information
Product
Acti 9
product type

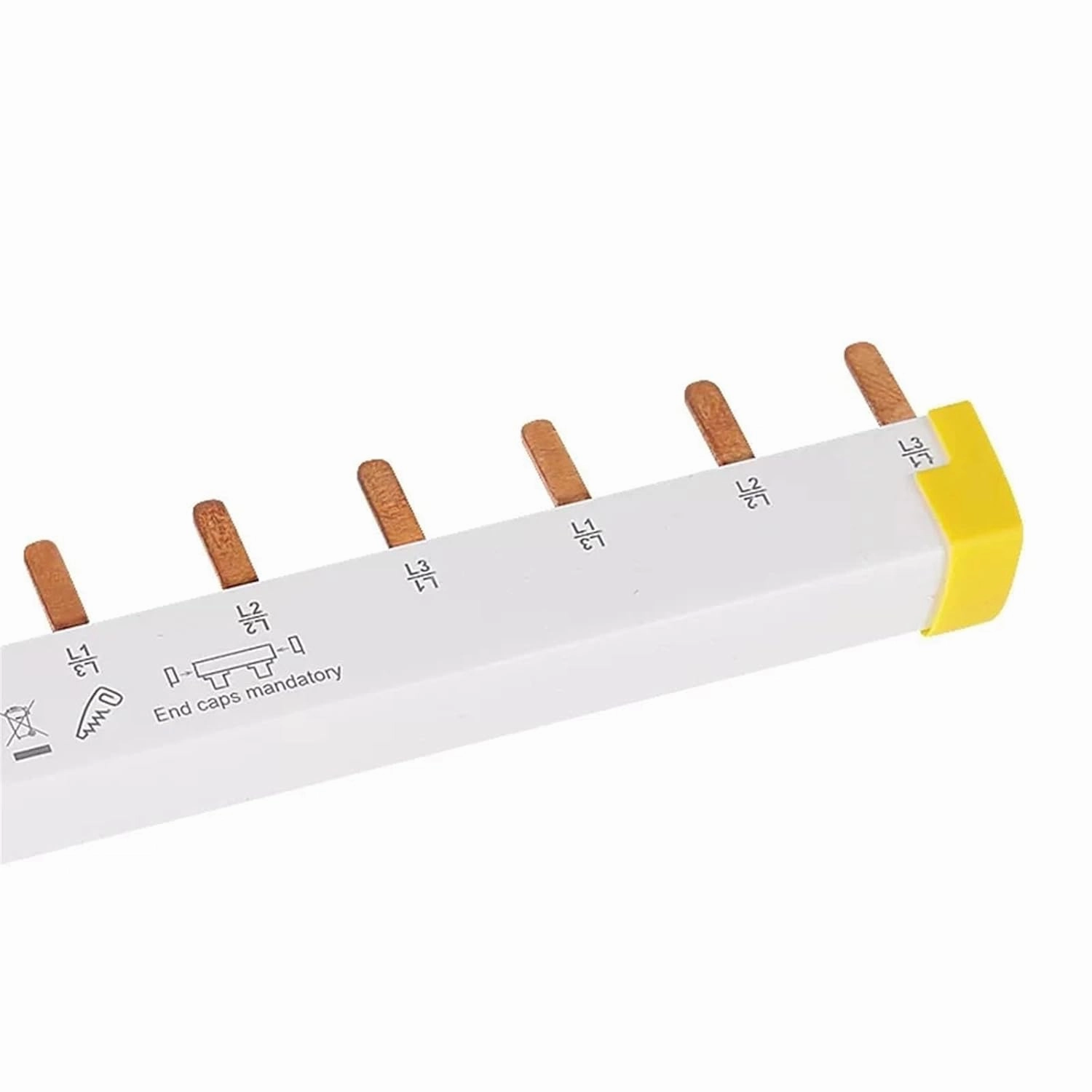

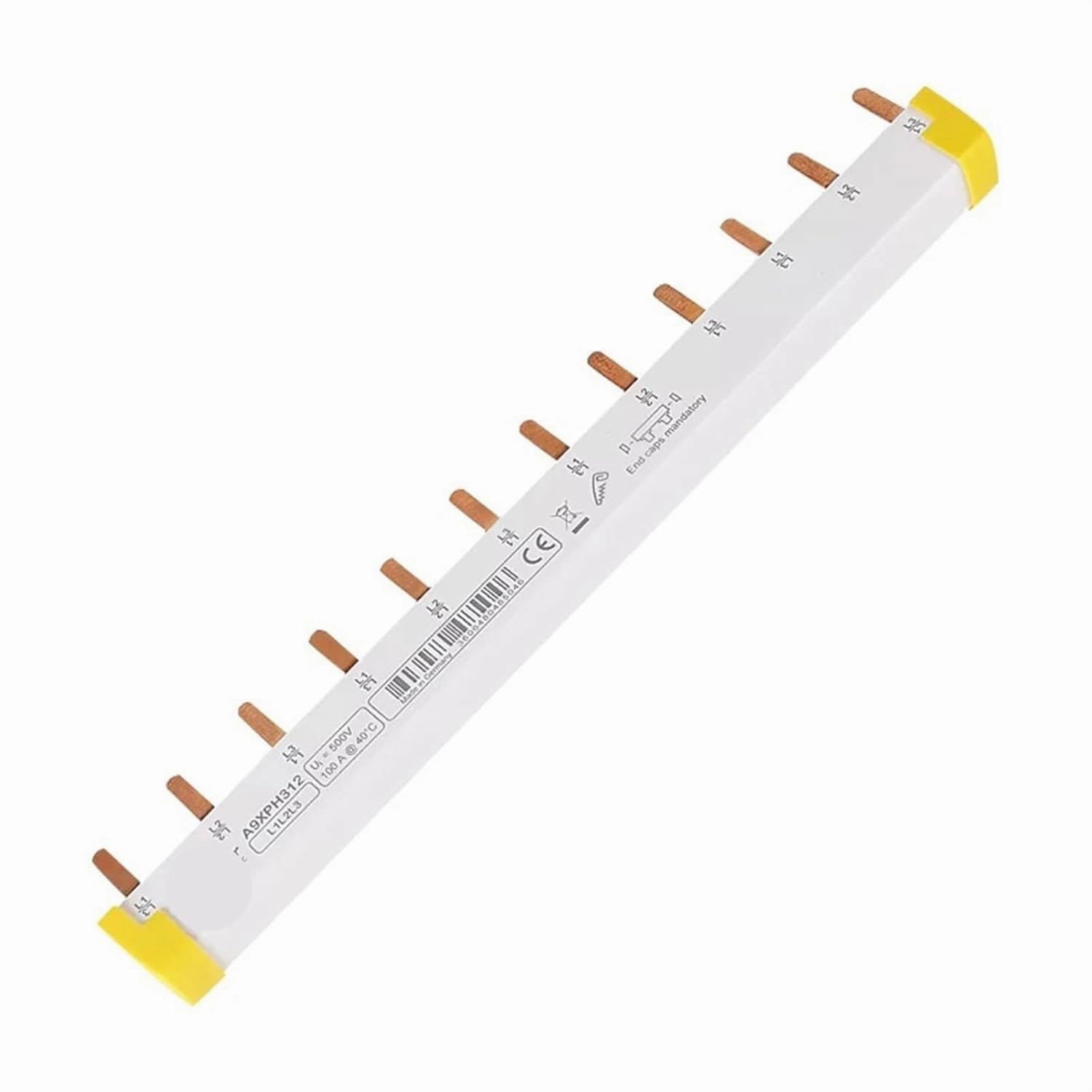

Comb bus
Attachments / Individually Mounted Parts
Wiring accessories
Line description
3L
Length in 18 mm modules
12
Additional information
(Loop) quantity
4 way 3 L
Number of poles by application
1 3P
Pole spacing
18 mm
Port type
Teeth (grit)
distance
54 mm
Sign
L1, L2, L3
isolation
insulation
Equipment Introduction
Cut
Rated operating current [Ie]
100 A at 40 ° C
Rated operating voltage [Ue]
415 V AC
Rated insulation voltage [Ui]
500 V AC conforming to IEC 61439-2
Installation type
Level
Installation location
Top or bottom on tunnel terminal
top or bottom on double terminal
Width (a multiple of 9mm)
twenty four
width
220 mm
colour
White (RAL 9003)
Scope of application
Acti 9 iC60
Acti 9 iK60
Acti 9 iID
Acti 9 iID K
Acti 9 iSW
Acti 9 iSW-NA
Multi 9 C60
surroundings
standard
60947-7-1 IEC
IEC 61439-2
Fire and abnormal high temperature resistance
960 ° C (30 s) conforming to IEC 60695-2-1
Pollution degree
3 conforming to IEC 60947-7-1
IP protection level
IP20 with end piece and tooth cover

• Product Dimensions ‏ : ‎ 8.66 x 8.66 x 4.72 inches; 1.76 ounces
• Department ‏ : ‎ Unisex Adult
• Date First Available ‏ : ‎ June 20, 2024
• Manufacturer ‏ : ‎ BAWHO
• Country of Origin ‏ : ‎ China
